Cross Reference Search for Springs, Suspensions and Air Springs
Spring # 55-053
| Make | Model | Year From | Year To |
|---|---|---|---|
| International - Navistar |
Notes/Description
Non Stock Spring
Non Stock Spring
Conv Cab/Tandem/School Bus
| OEM # | Manufacturer |
|---|---|
| 572500C91 | International - Navistar |
No longer available through Triangle
| Width | Arch | SE Length | SE End | LE Length | LE End |
|---|---|---|---|---|---|
| 3.0 | 5.75 | 30.25 | HK-2 | 30.25 | HK-2 |
| LVS | lvs | Grading | Type | Location | Capacity |
| 9/2 | 11 | 5/499, 6/447 | Rear | 10000 |
35 Associated parts
| Flagg # | Qty. | Description |
|---|
 |
B1052-97 | 4 | Jeep Spring Bolt (7/16-20x3) G |
 |
B1261-55 | 1 | Nav. Rebound Pin (3/4x5-7/8) |
 |

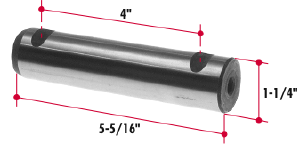

B1314-55 | 2 | Nav. Spring Pin |
 |

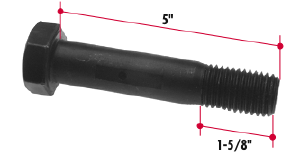

B1392-55 | 2 | Nav. Spring Bolt |
 |

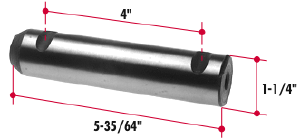

B1435-55 | 2 | Nav. Spring Pin |
 |

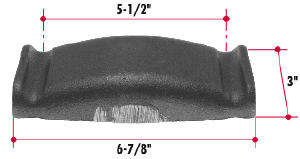

E129-55 | 2 | TBD Navistar Top U-Bolt Plate |
 |
E169-55 | 2 | Navistar Top U-Bolt Plate |
 |

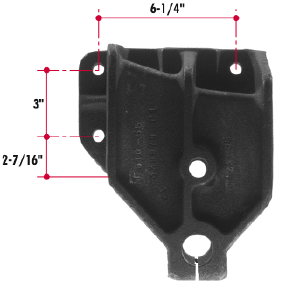

E310-55 | 1 | SPRING HANGER |
 |
E311-55 | 1 | SPRING HANGER |
 |
E417-55 | 2 | TBD Navistar Spring Hanger |
 |
E418-55 | 2 | TBD Navistar Spring Hanger |
 |

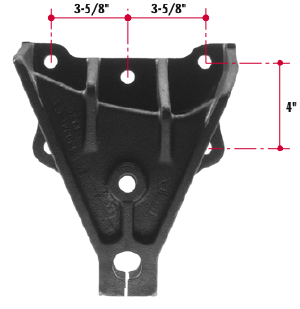

E420-55 | 1 | SPRING HANGER |
 |

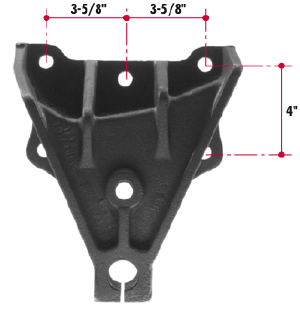

E421-55 | 1 | SPRING HANGER |
 |
E422-55 | 1 | SPRING HANGER |
 |
E423-55 | 1 | SPRING HANGER |
 |
E424-55 | 1 | SPRING HANGER |
 |
E425-55 | 1 | SPRING HANGER |
 |

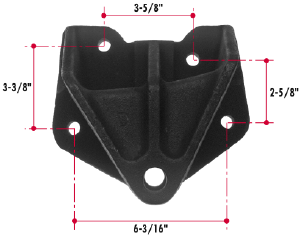

E426-55 | 1 | Spring Hanger |
 |
E427-55 | 1 | Spring Hanger |
 |

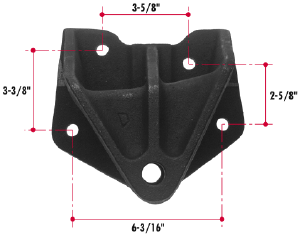

E428-55 | 1 | SPRING HANGER |
 |
E429-55 | 1 | SPRING HANGER |
 |
E598-55 | 2 | Navistar Spring Hanger |
 |
E599-55 | 2 | Navistar Spring Hanger |
 |

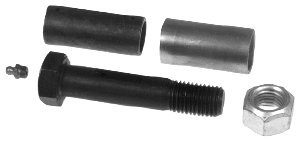

IH6 | 2 | INT Torque Leaf Bushing Kit |
 |
LN101 | 4 | Steel Lock Nut (7/16-20) Gr.C |
 |

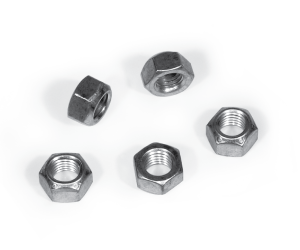

LNC107 | 2 | Steel Lock Nut (1-8) Gr.C |
| REMARK | 0 | FOR AXLE SEAT PART NO. AND DIMENSIONS REFER TO FLAGG I.H.C. CATALOG | |
| REMARK | 0 | FOR USE WITH STANDARD FRAMES: | |
| REMARK | 0 | FOR USE ON REINFORCED FRAMES: | |
| REMARK | 0 | FOR USE ON STANDARD FRAMES: | |
| REMARK | 0 | FOR AXLE SEAT PART NO. AND DIMENSIONS REFER TO FLAGG I.H.C. CATALOG | |
| REMARK | 0 | FOR MODELS 1979 - UP | |
| REMARK | 0 | FOR MODEL YEARS: 1962 - 1979. | |
 |

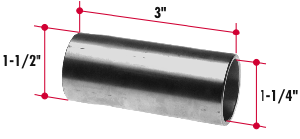

RNG | 2 | Bronze Bushing (1-1/2x1-1/4x3) |
 |

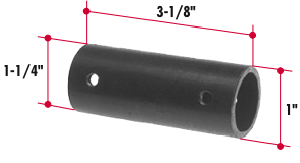

SP1 | 2 | INT Sleeve |
