Flagg # |
Qty. |
Description |
 |

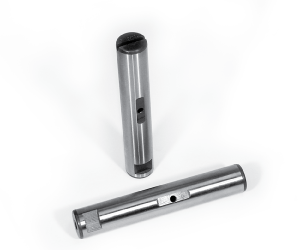

B1112-50 |
2 |
Hendrickson Spring Pin |
 |

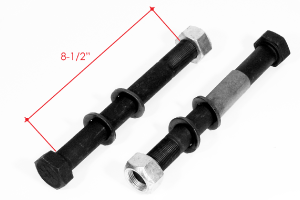

B1143-50 |
8 |
Hend. Top Pad Bolt (1-14x9) Kit |
 |

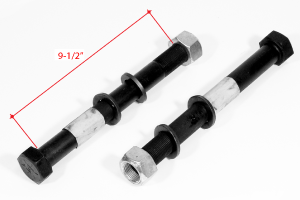

B1172-50 |
8 |
Hend. Top Pad Bolt (1-14x9-1/2) Kit |
 |

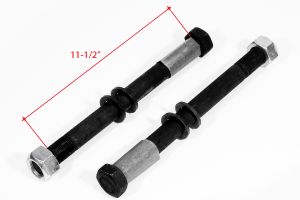

B1173-50 |
8 |
Hend. Top Plate Bolt (1-14x11-1/2) Kit |
|
|
4 |
BEAM END ADAPTER BOLT,INCLUDED IN HAK34 AND SAK340 |
 |

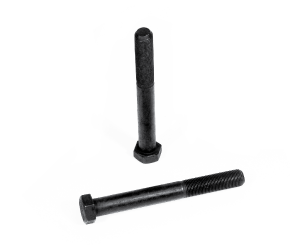

B1227-50 |
4 |
Hend. Bean End Adapter |
 |

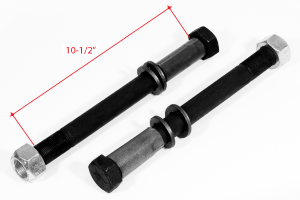

B1248-50 |
8 |
Hend. Top Pad Bolt (1-14x10-1/2) Kit |
 |
B1317-50 |
8 |
Hend. Top Pad Bolt (1-14x10) Kit |
 |

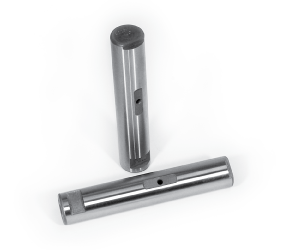

B1378-50 |
2 |
Hend. Spring Pin |
 |

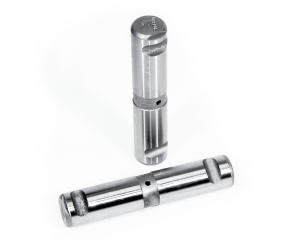

B1386-50 |
2 |
Hend. Spring Pin |
 |
B1418-50 |
8 |
Hend. Top Pad Bolt (1-14x11) Kit |
 |

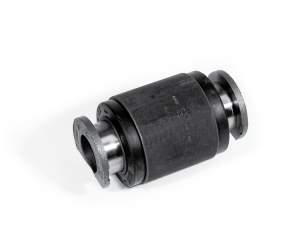

BA48 |
4 |
Hend. Bsh. Adapter Kit |
 |

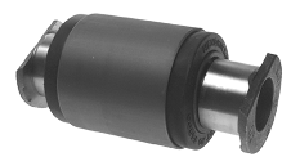

BA49 |
4 |
Hend. Bsh. Adapter Kit |
 |

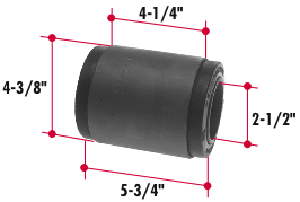

C862 |
4 |
Hend. Beam End Bsh.
|
 |
C862UB |
4 |
Poly beam end bushing |
 |

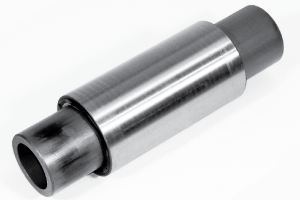

C864 |
2 |
Hend. Center Bsh. Welded Plug |
 |

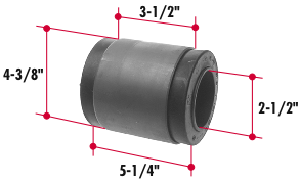

C865 |
4 |
Hend. Beam End Bsh. |
 |
C865UB |
4 |
Hend. Beam End Bsh. Polyuretha |
 |

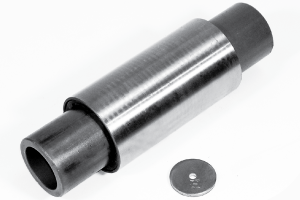

C866 |
2 |
Hend. Center Bsh. Loose Plug |
 |

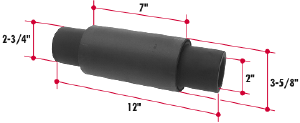

C866UB |
2 |
Hend. Cntr Bsh. Loose Plug Pol |
 |
C876 |
2 |
HEND.BOND CTR.BUSHING(29481-5 |
|
|
1 |
CROSS TUBE |
 |

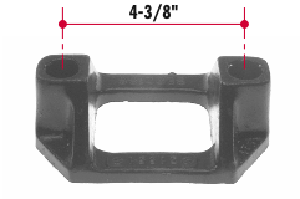

E336-50 |
2 |
Hendrickson Torque Rod Rod Bra |
 |

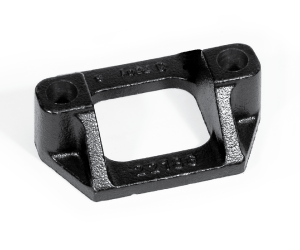

E337-50 |
2 |
Hendrickson Torque Rod Rod Bra |
 |

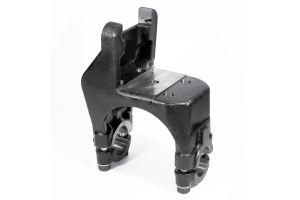

E363-50 |
2 |
Hendrickson Saddle Bracket |
 |
E364-50 |
2 |
Hendrickson Saddle Bracket |
 |

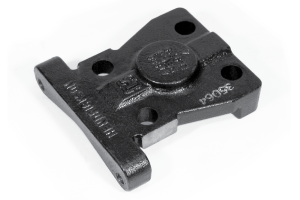

E366-50 |
2 |
Hendrickson Top Pad |
 |

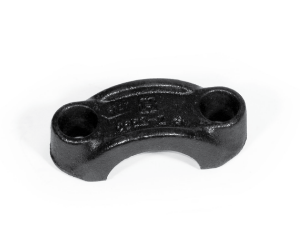

E469-50 |
4 |
Hend. Saddle Cap |
 |
G1803 |
2 |
Grease Fitting |
 |

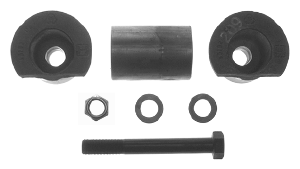

HAK34 |
4 |
Hend. Beam End Adapter Assy.- |
 |

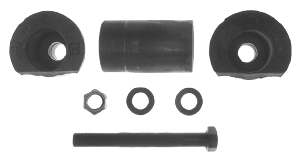

HAK38 |
4 |
Hend. Beam End Adapter Assy.- |
 |

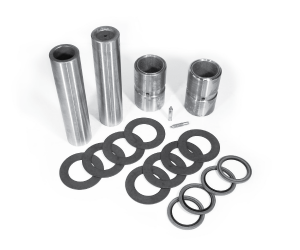

HBK34 |
1 |
Hend. Bronze Center Bushing Kit |
 |

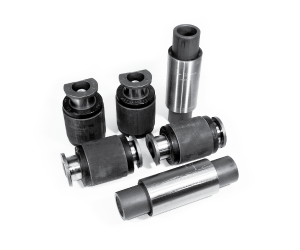

HCK340 |
1 |
Hend. Beam Bushing Kit Welded |
 |
HCK340L |
1 |
Equalizer Beam Bsh. Kit |
 |
HCK340LP |
1 |
SOP Hend. Beam Bushing Kit Loo |
 |

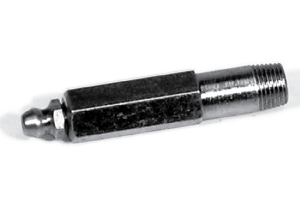

HS15 |
2 |
Hend. Almite Grease Fitting |
 |

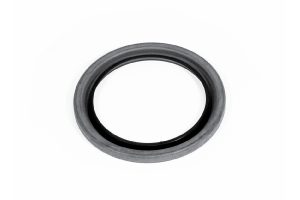

HS23 |
4 |
Hend. Beam Center Seal |
 |

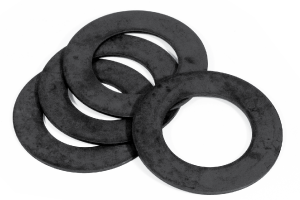

HS24 |
4 |
Hend. Equalizer Thrust Washer |
 |
HS28 |
2 |
Hend. Rebound Bolt & Spacer Kit |
 |
LN106 |
8 |
Steel Lock Nut (7/8-14) Gr.C |
 |
LN107 |
8 |
Steel Lock Nut (1-14) Gr.C |
 |

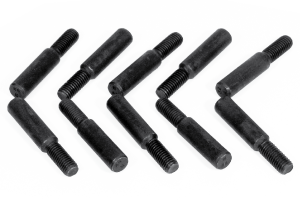

LP106 |
2 |
Lock Pin (1/2x3-1/4) |
|
|
0 |
ON INTERNATIONAL ARE THE SAME AS LISTED ABOVE. |
|
|
0 |
PARTS FOR RT-RTE 340 SERIES SUSPENSION THAT USES TANDEM STUDS |
|
|
0 |
FOR SPRING HANGER AND TORQUE ROD INFORMATION REFER TO THE |
|
|
0 |
HENDRICKSON SECTION OF THE FLAGG CATALOG. |
|
|
0 |
INTERNATIONAL TRUCKS USES THEIR OWN STYLE OF SPRING HANGERS FOR |
|
|
0 |
THIS SUSPENSION,REFER TO THE INTERNATIONAL CATALOG OR THE |
|
|
0 |
HENDRICKSON CATALOG FOR THIS INFORMATION. ALL OTHER PARTS USED |
|
|
2 |
SPRING EYE BUSHING,1-1/4 DIA. |
|
SAK340 |
2 |
End Bushing Adapter Kit w/Split Ring |
 |

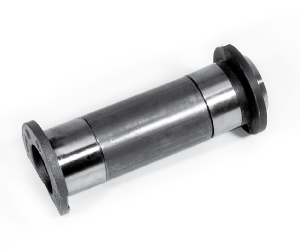

SAK380 |
2 |
Splt Flng Adaptor |
 |

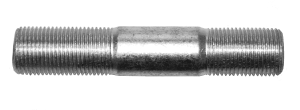

SD105 |
8 |
Saddle Stud |
 |

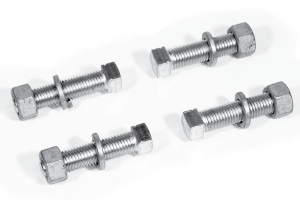

SD106 |
2 |
Hend. Set Screw |
|
|
2 |
SPRING EYE BUSHING,1-3/8 DIA |
 |
UBW80 |
8 |
U-Bolt Washers (7/8) Hardened |
 |
UBW85 |
8 |
U-Bolt Washers (1) Hardened St |
